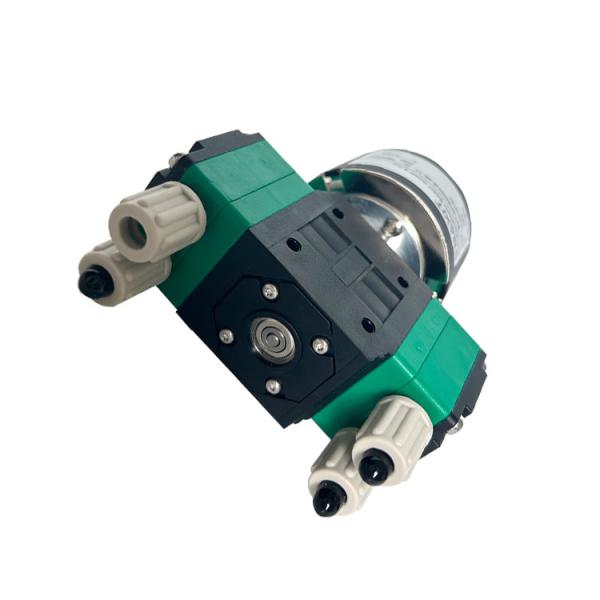

DC 24V High Pressure Diaphragm Self Priming Pump Vacuum Pump

Name: DC 24V High Pressure Diaphragm Self Priming Pump Vacuum Pump
Brand: BAXIT
Price: 158 USD

Quality DC 24V High Pressure Diaphragm Self Priming Pump Vacuum Pump wholesale

Brand Name : BAXIT

Model Number : BXT-NFB60DCB-4B-TT

Place of Origin : CHINA

MOQ : 1unit

Price : USD158/unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 99999units

Delivery Time : 1-3working days

Packaging Details : Carton

Model : BXT-NFB60DCB-4B-TT

voltage/Power : 12Vor24V/10W

Electrical machinery life : 20000H

outlet pressure : 1bar

Under pressure : ≥-0.06Mpa

positive pressure : ≥0.14Mpa

Gas flowrate : 2*700ml/min

weight : 422g

Noise : 60dB

Work Temperature : -8~45℃

Delivery lift : 1bar

Pump head material : PP

Contact Now

Principle:

Micro diaphragm pump is based on the principle of positive displacement pump simple design, by the motor through the transmission mechanism, to promote the diaphragm reciprocating motion, control the valve plate closed and opened, so as to form the water absorption and discharge of liquid.

DC 24V High Pressure Diaphragm Self Priming Pump Vacuum Pump

voltage/Power	12Vor24V/10W	Electrical machinery life	20000H
outlet pressure	1bar	Under pressure	≥-0.06Mpa
positive pressure	≥0.14Mpa	Gas flowrate	2*700ml/min
weight	422g	Noise	60dB
connection type	Plus or minus 2stage/ PWM control	Work Temperature	-8~45℃
Delivery lift	1bar	Pump head material	PP
valve plate	EPDM/FPM/FFPM	Diaphragm	EPDM/PTFE/PTFE

DC 24V High Pressure Diaphragm Self Priming Pump Vacuum Pump

Typical applications:

Laboratory sampling, analysis and testing instruments; Medical equipment; Swimming pool equipment; Water quality analysis; Ceramic machine, UV machine, inkjet printing equipment, etc.
